RUPTURE PIN | Adaptive Industrial Solutions

ADVANCED PRESSURE RELIEF AND ISOLATION VALVES

GET the POWER of the PIN

Precise, fully mechanical pressure protection engineered to open within milliseconds at the designated set point.

REQUEST A QUOTE

RUPTURE PIN CALCULATOR

HOW IT WORKS

Reliable Protection. Simple Operation.

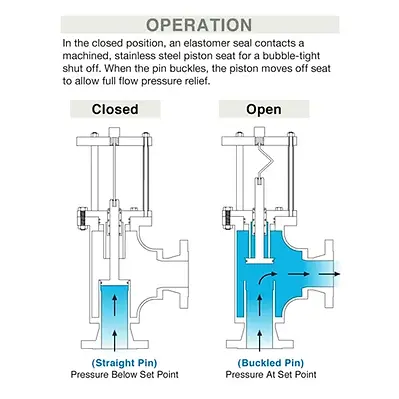

Rupture Pin valves use a precision buckling pin as both the pressure sensor and actuator. During normal operation, the straight pin holds the piston in a bubble-tight position. When pressure reaches the exact set point, the pin buckles and the valve moves immediately to relieve or isolate pressure.

The pin is external to the process flow, does not fragment, and can be replaced without opening the line. This helps provide dependable operation with minimal maintenance and downtime.

Power of the Pin

Key Advantages

☑ Bubble-tight sealing up to the set point

☑ Opens within milliseconds for rapid protection

☑ Unaffected by pulsating pressure

☑ No loose metal or plastic fragments in the flow stream

☑ Pin cannot fatigue and buckle prematurely

☑ Quick reset without opening the line to atmosphere

☑ Visual indication with optional remote monitoring

Model C-ASME

An angle-body pressure relief valve with a full-bore orifice and an inlet smaller than the outlet for a wide range of applications.

• Set pressure: 15 to 1,480 PSI
• Sizes: 1.5 to 36 inches
• Available with flanged connections

View Model C-ASME Brochure

Model D

A versatile inline valve that remains bubble-tight until the exact set pressure is reached, then opens immediately to protect the system.

• Set pressure: 5 to 2,000 PSI
• Standard and custom connections available
• Carbon steel body with stainless steel trim standard

View D Brochure

Model CM

An angle-body relief valve designed for viscous fluids, pulp applications and steam-jacketed systems.

• Set pressure: 5 to 2,000 PSI
• Accuracy: ±5%
• Bubble-tight shutoff

View CM Brochure

Model H

An angle-body valve for methanol and chemical injection systems with bubble-tight shutoff.

• Set pressure: 1,000 to 16,500 PSI
• Accuracy: ±5%
• 316 stainless steel body and trim

View Model H Brochure

Model CC

Specifications

• Pressure Set Point Range: 15 to 1,480 PSI
• Sizes: 1 × 2 inches to 8 × 10 inches
• Connections: Flanged connections available, 150# to 600#
• Valve Seals: Available for high and low temperatures, FKM standard
• Standard Materials: ASME Section II materials
• Accuracy: ASME ±5% above 40 PSI and ±2 PSI at 40 PSI and below

Applications

The Model CC-ASME valve provides safety for a wide variety of pressure relief applications. It is an ideal substitute for rupture discs.
