Jogler

Jogler Magnetic Level Gauges, Level Transmitters and Switches

Magnetic level gauges, external chambers, transmitters, switches and sight indicators, built to your specification in Baton Rouge, Louisiana. We help you configure a new gauge or replace the one you have.

Request a QuoteHelp Me Select a Product

What Jogler Provides

Send Jogler the drawing of the gauge or assembly in your vessel and they build that exact assembly at their Baton Rouge plant. Products are fabricated to ASME B31.1 or B31.3 under a quality program based on ISO 9001 guidelines.

The MGT-6000 transmitter retrofits to most magnetic level indicators, and JS-10/JS-30 switches retrofit onto existing magnetic level gauge installations.

  • JMG magnetic level gauges and JXC external chambers, custom engineered to your connections
  • MGT-6000 and ILT-6000 magnetostrictive transmitters and the LLT-1000 laser level transmitter
  • Transmitters and switches that retrofit to existing magnetic level gauges
  • In-house CNC machining, extruded outlets, code welding, X-ray and PMI
Category 1 of 5

Magnetic Level Gauges & Chambers

Magnetic level gauges and external chambers designed to ASME B31.1 or B31.3 and custom engineered to mate with new or existing piping.

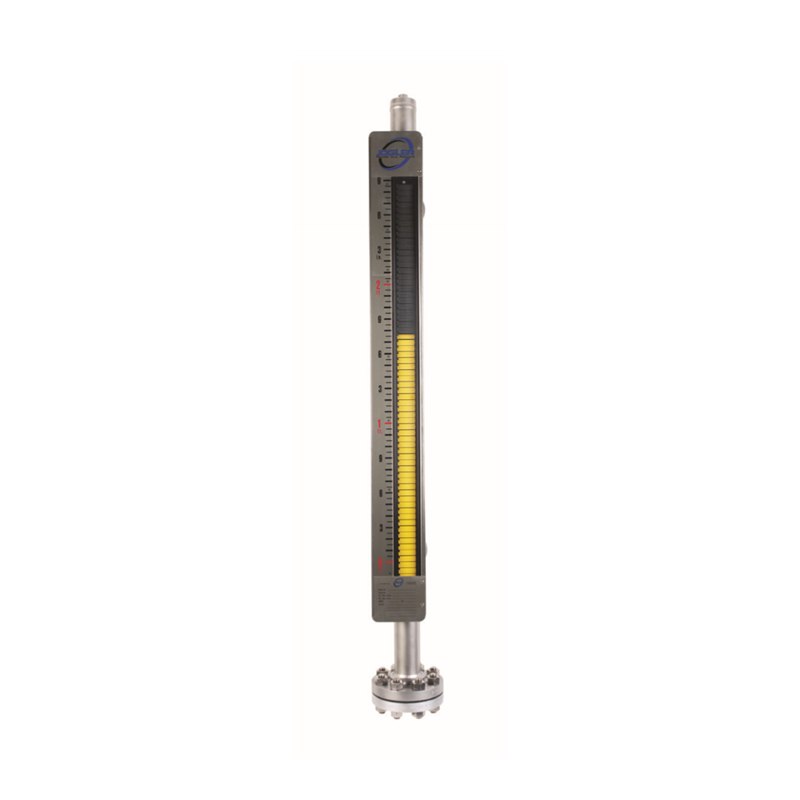

Jogler JMG magnetic level gauge with bargraph indicator

JMG Magnetic Level Gauge

Built to your connections and center-to-center

A float inside a non-magnetic chamber drives a magnetic bargraph or shuttle indicator, so the level is visible with no fluid in contact with glass.

Key features

  • Full vacuum to 5,000 psig and -320°F to 1,000°F
  • Fluid specific gravity as low as 0.25; indicator visible to 200 feet
  • Extruded full-bore outlets and one-weld deep-drawn floats, each hydrotested above gauge MAWP

Common applications

  • Separators and oil/water interface
  • Boiler drums and feedwater tanks
  • Reactor level and batch processing
Download DatasheetRequest a Quote

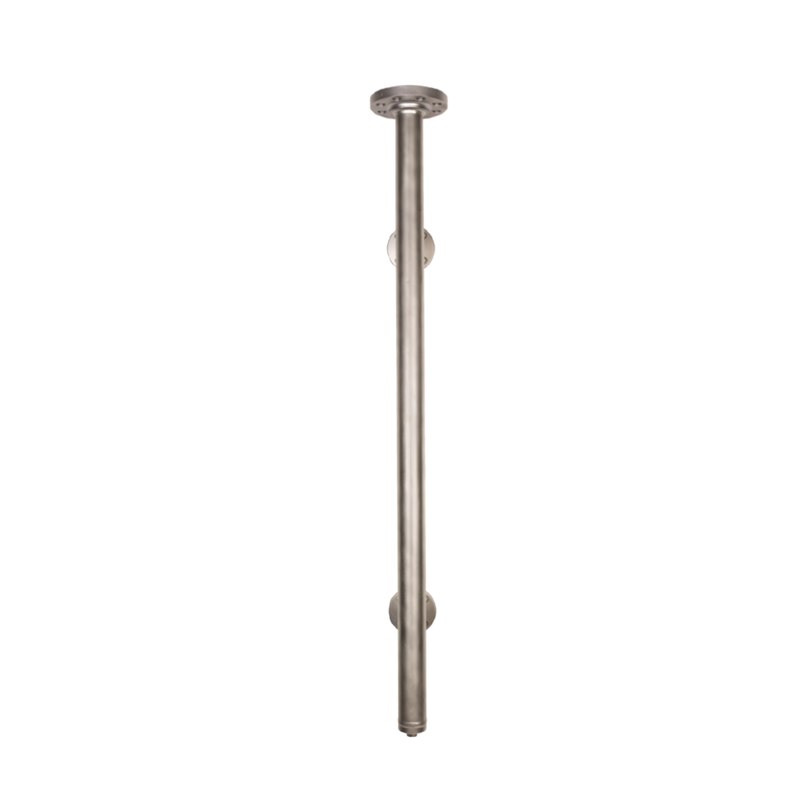

Jogler JXC external chamber for a direct insertion level transmitter

JXC External Chamber

A bridle for the transmitter you already use

JXC chambers are bridles that house level instruments outside the vessel, so the instrument can be isolated from the process for maintenance or recalibration.

Key features

  • 1-1/2 in to 4 in chambers
  • For guided wave radar, capacitance, tuning fork and ILT-6000 transmitters
  • Designed to ASME B31.1 or B31.3
Download DatasheetRequest a Quote

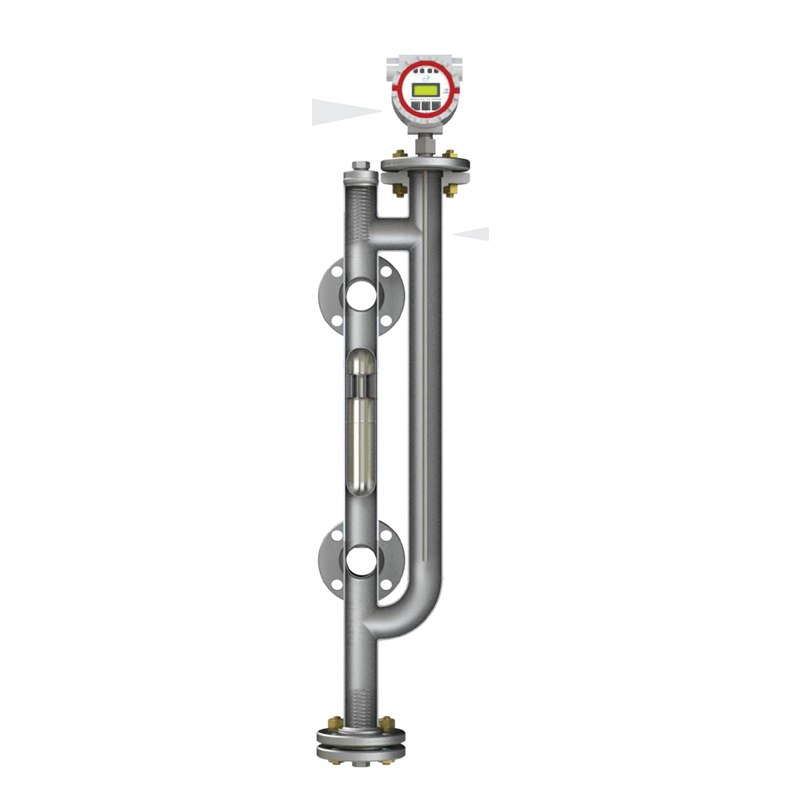

Jogler dual chamber level system with transmitter on the secondary chamber

Dual Chamber Level System

Redundant level technologies on one vessel connection set

A magnetic level gauge with a close-coupled secondary chamber for a second technology such as guided wave radar or a JLT-6000 magnetostrictive transmitter.

Key features

  • Left or right hand secondary chambers in 1-1/2 in to 4 in sizes
  • 304SS, 316SS, Hastelloy C-276, Alloy 20 and other non-magnetic metals
  • Top-bottom, side-side, side-bottom and top-side connections
Download DatasheetRequest a Quote
Category 2 of 5

Level Transmitters

Continuous level and interface signals from a transmitter clamped on a magnetic gauge, inserted in the vessel or reading by laser without contact.

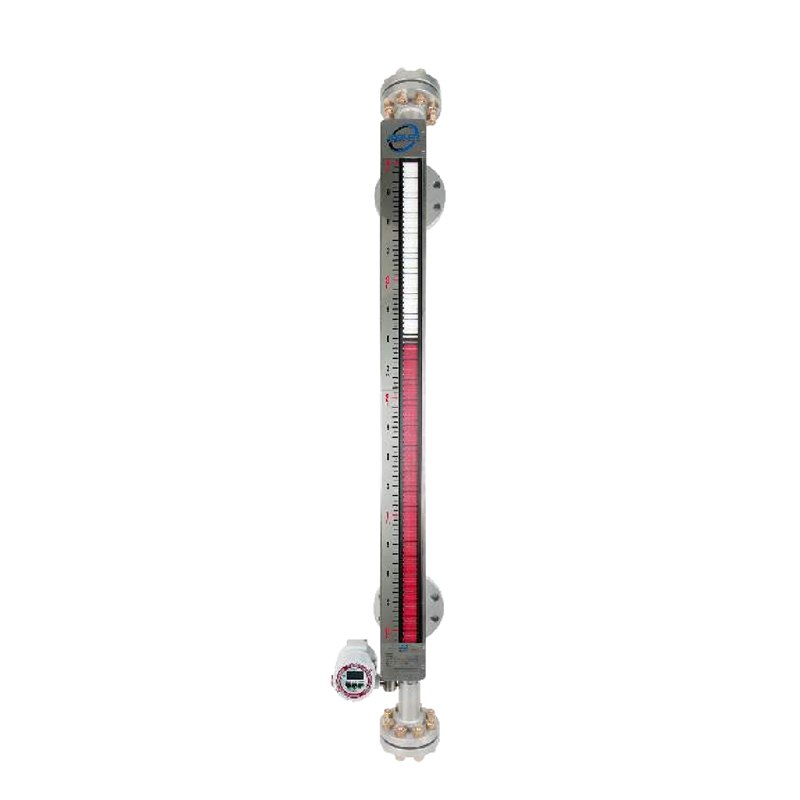

Jogler MGT-6000 magnetostrictive transmitter mounted on a magnetic level gauge

MGT-6000 Magnetostrictive Level Transmitter

Clamps onto a magnetic level gauge

Mounts outside the gauge chamber and retrofits to most magnetic level indicators, so you can add a 4-20 mA signal without opening the process.

Key features

  • 0.01% of span accuracy
  • 4-20 mA with HART and an LCD display
  • Measuring lengths to 35 ft; FM approved for the US and Canada
Download DatasheetRequest a Quote

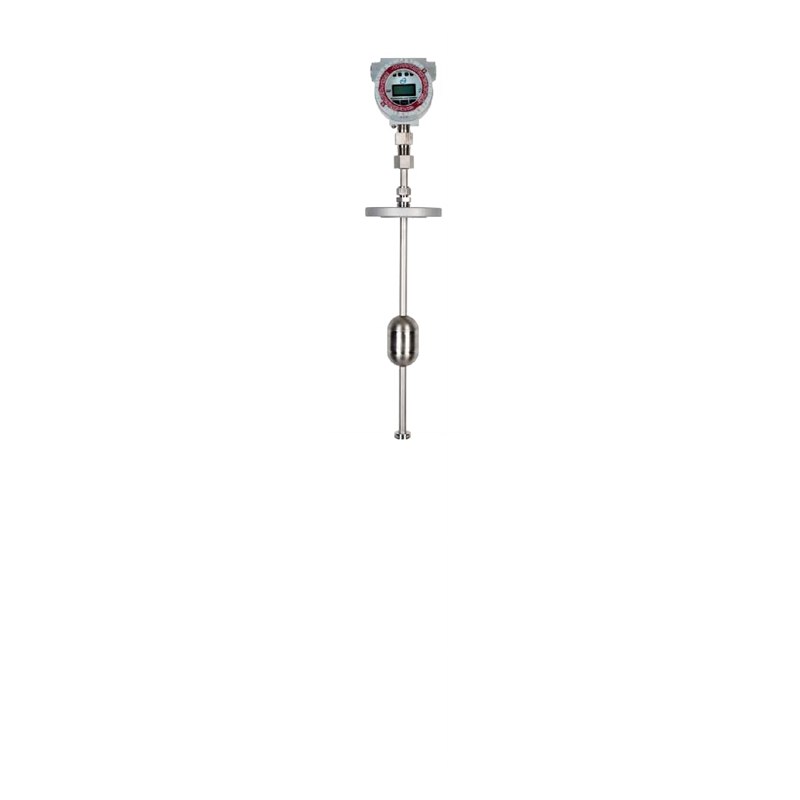

Jogler ILT-6000 direct insertion magnetostrictive level transmitter with float

ILT-6000 Direct Insertion Level Transmitter

Patented in-tank transmitter in an isolation well

The waveguide sits in an isolation well, so the transmitter and waveguide can be removed without interrupting the process.

Key features

  • Full vacuum to 3,000 psig and 800°F
  • Total level and interface outputs, 4-20 mA with HART
  • Isolation well and float in 316 SS, CPVC, Alloy 20, titanium, Hastelloy, PP or PVDF
Download DatasheetRequest a Quote

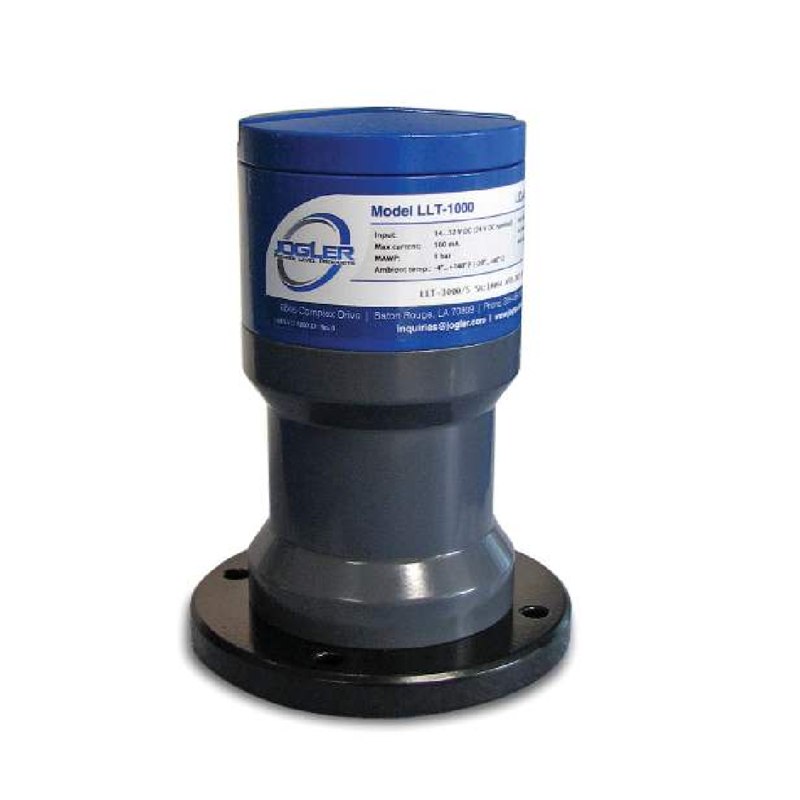

Jogler LLT-1000 LIDAR laser level transmitter

LLT-1000 LIDAR Level Transmitter

Non-contact laser level for solids and opaque liquids

Measures distance by time-of-flight laser in silos, tanks, hoppers, chutes and bunkers, with a narrow beam you can aim at the most critical point.

Key features

  • 2 to 330 ft with a reflector, ±0.5 in
  • 4-20 mA plus two relays; local USB programming
  • FM and CSA hazardous area approved

Common applications

  • Silos, hoppers, chutes and bunkers
  • Dry bulk foods and pet food
  • Plastics and aggregates
Download DatasheetRequest a Quote
Category 3 of 5

Point Level Switches

Switches that mount on the outside of a magnetic level gauge, so setpoints can be set or moved without opening process piping.

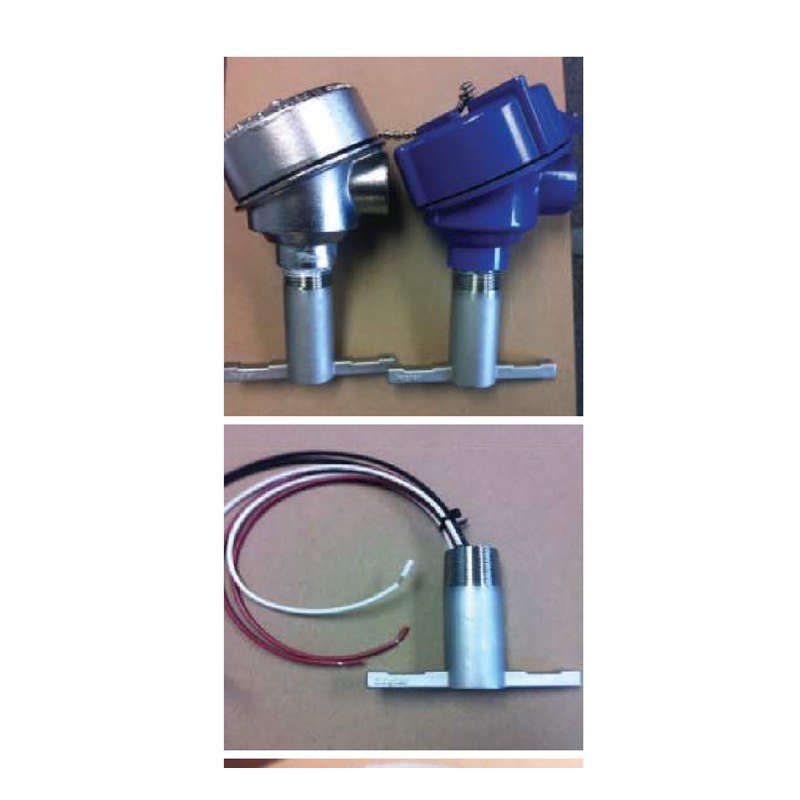

Jogler JS-10 and JS-30 magnetic level switches

JS-10 / JS-30 Magnetic Level Switch

Hermetically sealed latching switches with no wetted parts

The JS-10 (1 A) suits DCS or PLC inputs and the JS-30 (3 A) drives larger relays and solenoid valves. Both clamp to the gauge chamber.

Key features

  • Bi-stable latching reed switch, SPDT or DPDT
  • Flying leads, epoxy-coated aluminum or 316 stainless steel enclosure
  • CSA Class I, Div 1, Groups B, C, D

Common applications

  • Overfill prevention
  • Dump and fill control
Download DatasheetRequest a Quote

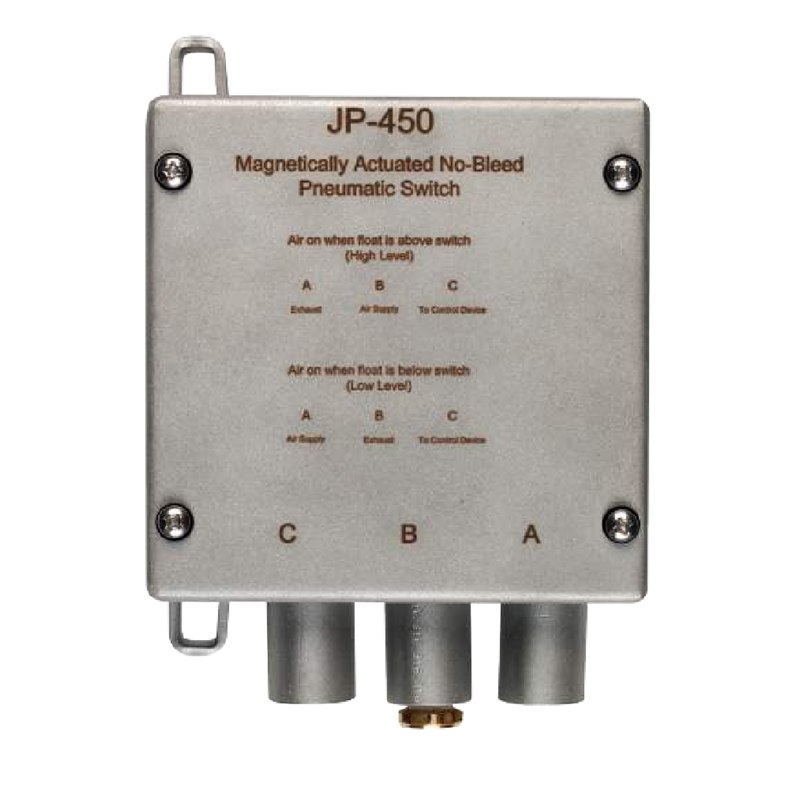

Jogler JP-450 magnetically actuated no-bleed pneumatic switch

JP-450 Pneumatic Level Switch

Magnetically actuated no-bleed pneumatic switch

A pneumatic point level switch that clamps to a magnetic level gauge and can be set up as a high or low level switch.

Key features

  • Zero air consumption under static conditions
  • Mounts with hose clamps; setpoint adjusts along the chamber
  • Supply, vent and output ports for alarms and control valves

Common applications

  • Oil-water separators and sumps with pneumatic control
Download DatasheetRequest a Quote
Category 4 of 5

Direct-Reading Level Gauges

Armored sight level gauges with patented PTFE SuperSeal inserts that seal on the tube and eliminate the flange gasket.

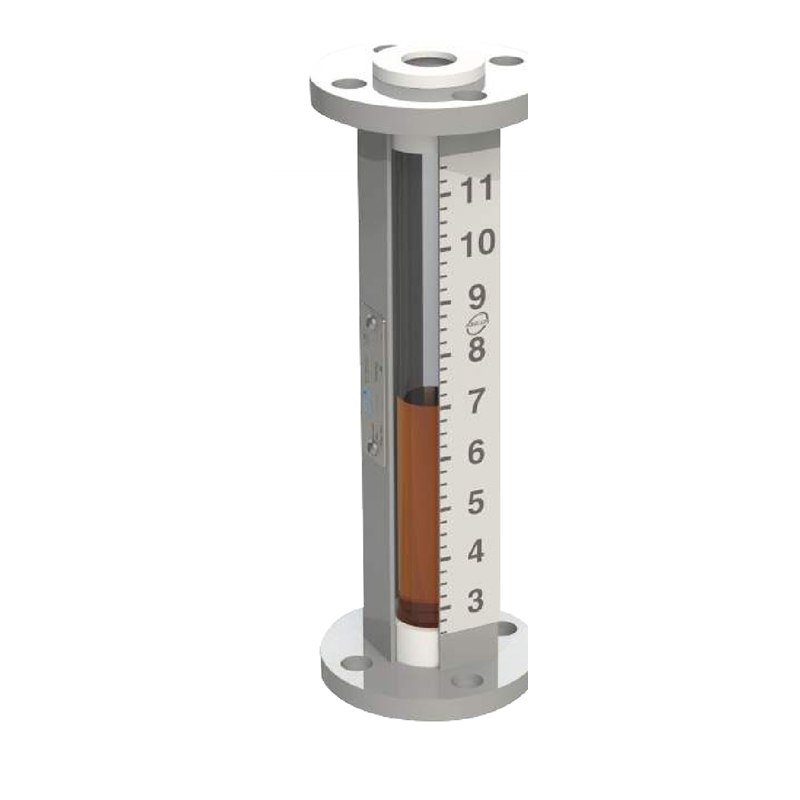

Jogler Model LS single tube armored level gauge

Model LS Single Tube Armored Level Gauge

Unobstructed visibility and maintenance free

A borosilicate sight tube in an armored shield with PTFE and borosilicate the only wetted parts.

Key features

  • FM approved (150°F max) to the lengths in the datasheet
  • Rated up to 285 psig (ANSI 150)
  • Optional 316 SS shields; ANSI Class 300 flanges on request
Download DatasheetRequest a Quote

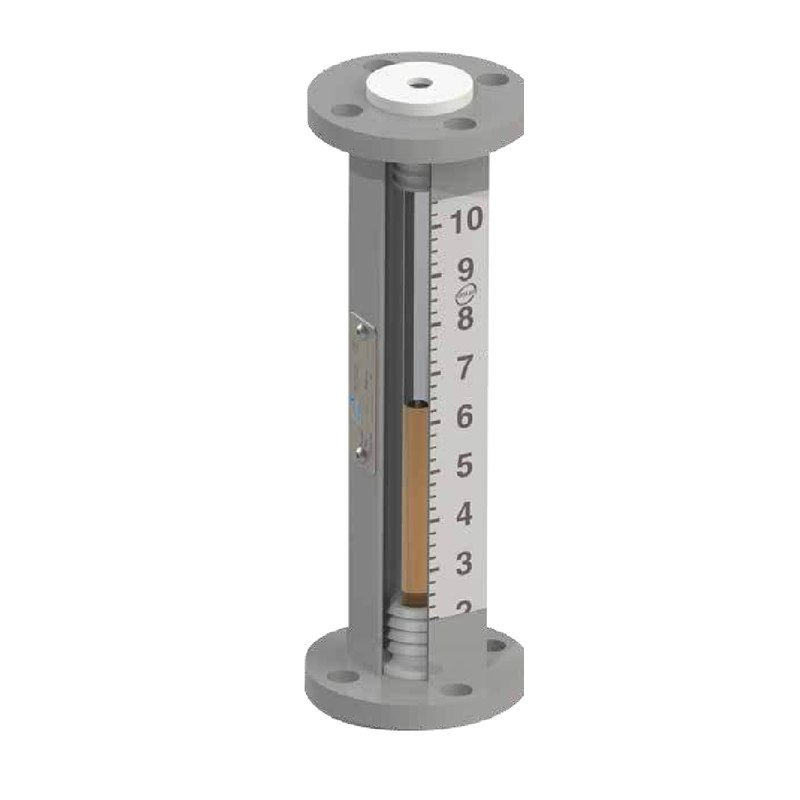

Jogler Model LT tube-n-tube armored level gauge

Model LT Tube-N-Tube Armored Level Gauge

For cryogenic and hot process applications

A protected inner sight tube inside a polycarbonate or borosilicate outer tube. The transparent insulation reduces heat loss and many heat-tracing needs.

Key features

  • Recommended for full-vacuum applications
  • Rated up to 285 psig (ANSI 150)
  • FM approved (150°F max) to the lengths in the datasheet
Download DatasheetRequest a Quote
Category 5 of 5

Flow Indicators

Armored and lantern sight flow indicators with patented SuperSeal inserts, manufactured to your length and line size.

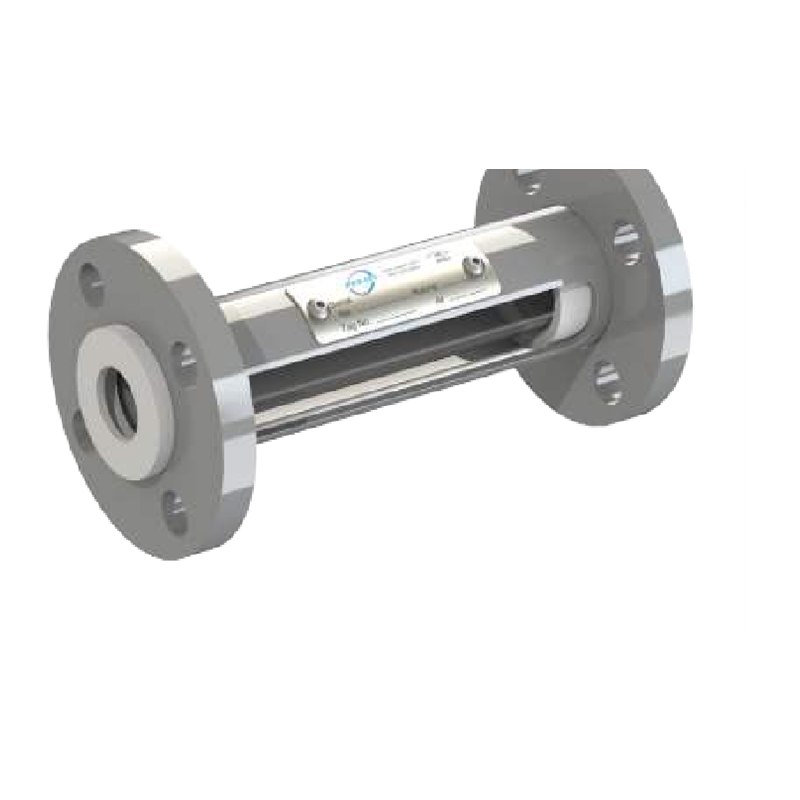

Jogler Model FS single-tube armored flow indicator

Model FS Single-Tube Armored Flow Indicator

Armored sight flow indicator

A borosilicate sight tube inside an epoxy-coated carbon steel shield, with sanitary fittings and threaded ends available.

Key features

  • Flange sizes from 1 in to 8 in
  • FM approved (150°F max) to the lengths in the datasheet
  • Optional 316 SS shield and flanges
Download DatasheetRequest a Quote

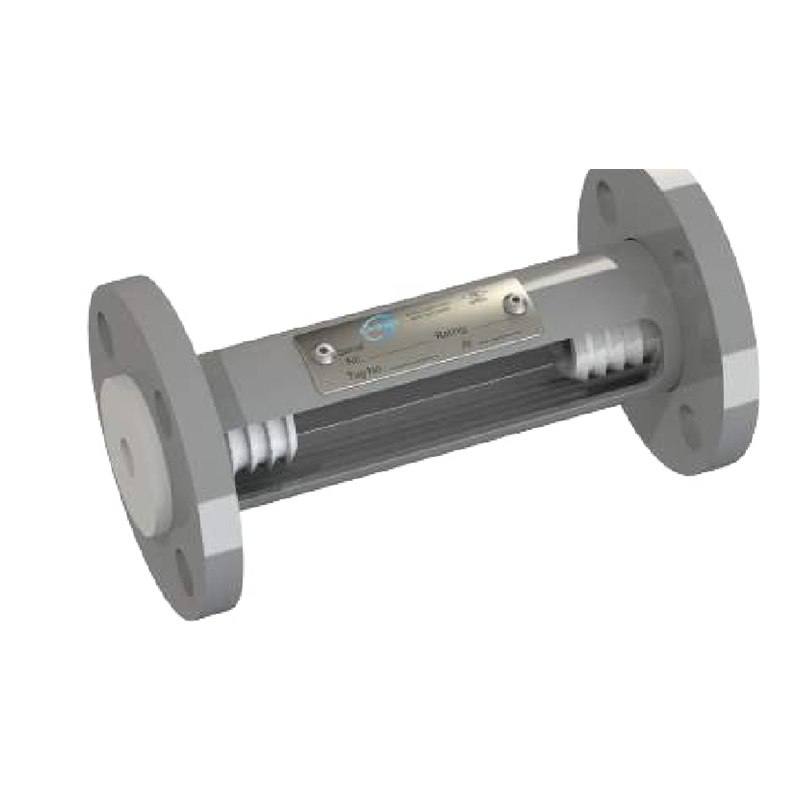

Jogler Model FT tube-n-tube armored flow indicator

Model FT Tube-N-Tube Armored Flow Indicator

Double sealed and insulated

An inner borosilicate tube with a polycarbonate, acrylic or borosilicate outer tube for cryogenic and hot process service.

Key features

  • Rated for full vacuum service
  • Reducing flanges and threaded ends available
  • Optional 316 SS construction
Download DatasheetRequest a Quote

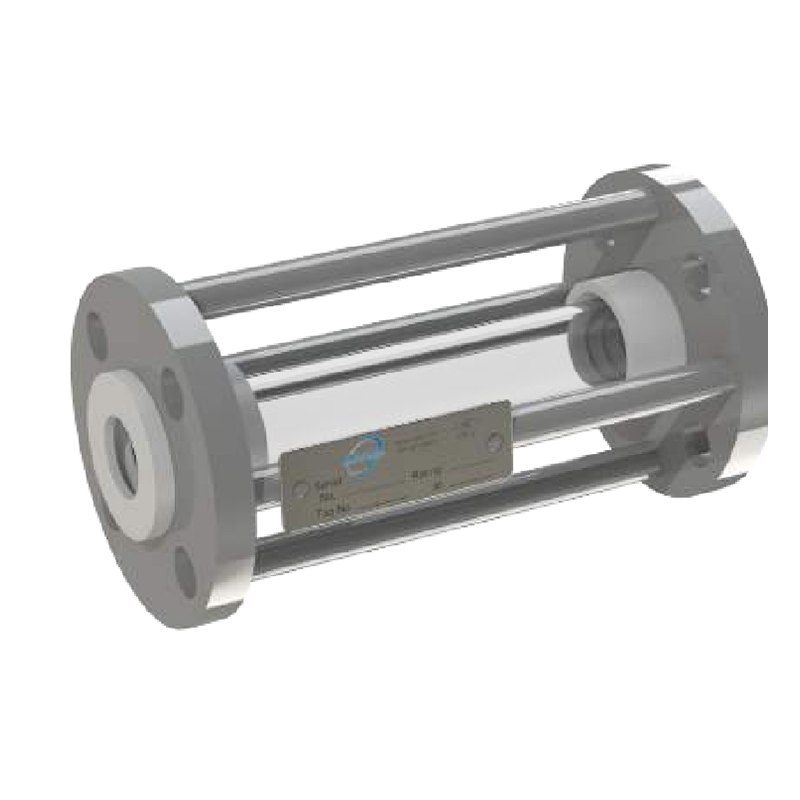

Jogler Model LAS single-tube lantern flow indicator

Model LAS Single-Tube Lantern Flow Indicator

Full 360° unobstructed visibility

An all-welded lantern frame of flanges and support rods around a borosilicate sight tube.

Key features

  • Flange sizes from 1 in to 8 in
  • Rated for full vacuum service
  • Optional 316 SS support rods and flanges
Download DatasheetRequest a Quote

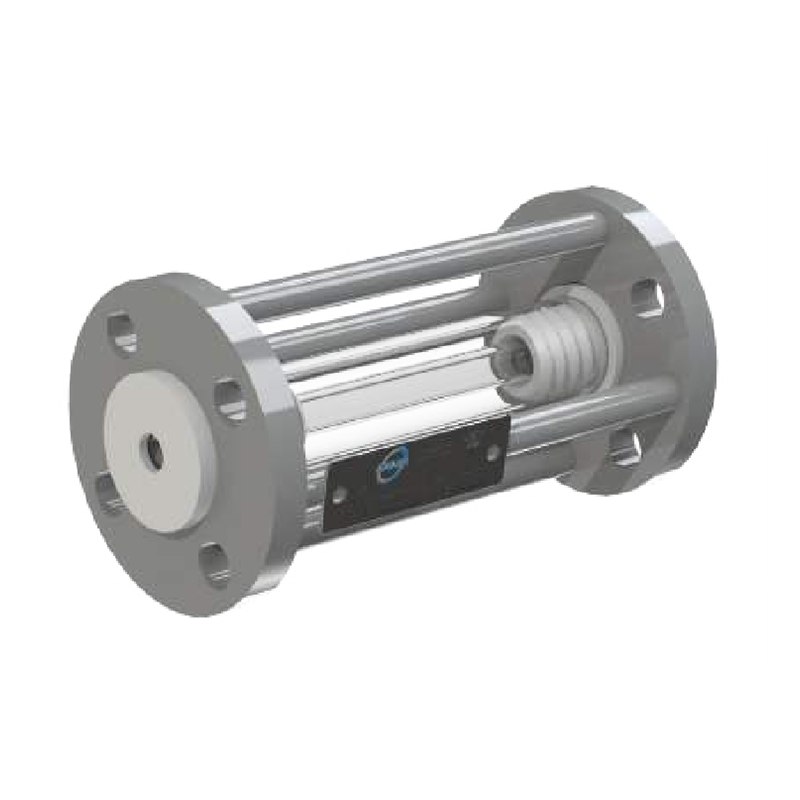

Jogler Model LAT tube-n-tube lantern flow indicator

Model LAT Tube-N-Tube Lantern Flow Indicator

360° visibility for cryogenic and hot service

The lantern design with an inner borosilicate tube and an insulating outer tube, double sealed for cold or hot lines.

Key features

  • Full 360° unobstructed visibility
  • Reducing flanges and threaded ends available
  • Optional 316 SS support rods and flanges
Download DatasheetRequest a Quote

Jogler Industries & Applications

Where Jogler level gauges, transmitters and switches are used, with the products to look at for each.

Industries are listed where Jogler names them. Tell us about your vessel and we will help you choose.

Technical Resources

Application help

Need help selecting or replacing a Jogler level gauge?

Send us the drawing or a nameplate photo of the gauge or assembly in your vessel, the fluid and its specific gravity, operating and design pressure and temperature and the center-to-center. If you don't know an answer, mark it unknown.

Drawing or nameplate photoFluid and specific gravityOperating and max pressureOperating and max temperatureCenter-to-center and connectionsChamber, flange and float materialsSwitches, transmitter, insulation
Download the Quote Checklist
