Mallard Control · A brand of Taylor Valve Technology

Mallard Level Controls, Dump Valves and Pressure Regulators

Level switches and controllers, freezeless dump valves and gas pressure regulators for separators and process vessels. We help you choose a model or find the Mallard replacement for what you run now.

Request a QuoteHelp Me Select a Product

What Mallard Control Provides

Mallard Control makes level instruments, control (dump) valves and pressure regulators for oil and gas separators, scrubbers and other process vessels.

Looking to replace an existing level controller, dump valve, gauge valve or regulator? Mallard's crossover sheet lists alternatives to Wellmark, Norriseal, Murphy, BelGAS, Kimray, Fisher, BMD, Inferno, Penburthy, Questec and MECO models; some are marked not interchangeable, so send us the make, model and a nameplate photo and we will identify the right Mallard alternative.

  • Electric and pneumatic float level switches and displacer level controllers
  • Freezeless angle dump valves with NACE MR0175 material options
  • Self-operated regulators for air, natural gas and other gases, including high-pressure models
  • Mallard alternatives to many common level controls, dump valves and regulators

Product Families

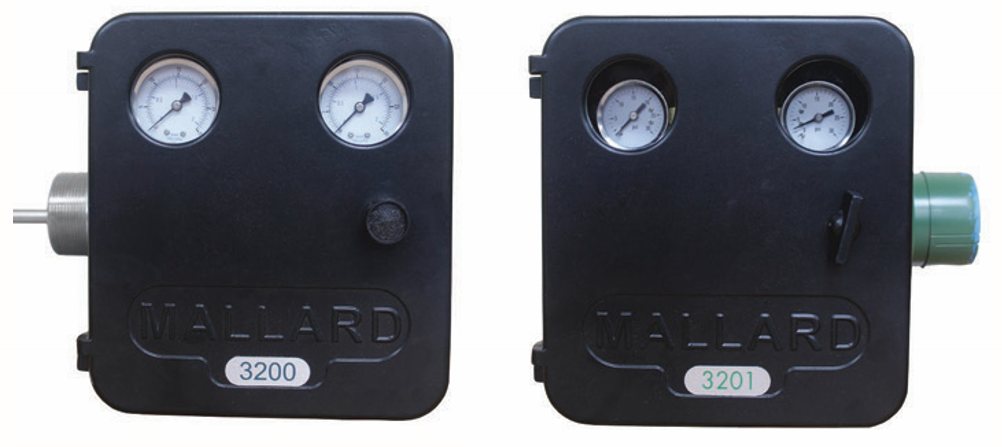

Mallard Model 3200 and 3201 liquid level controllers
3100E, 3100P/P1, 3200/3201

Level Instrumentation

Float level switches and displacer level controllers for scrubbers, separators and other vessels. Mallard also offers the 3520 high-pressure sight glass and 3500/3510 gauge cocks.

  • 3100E electric float switch for high or low level alarm or level control
  • 3100P 2-way and 3100P1 3-way block-and-bleed pneumatic switches
  • 3200/3201 controllers with snap ECO, throttling or explosion-proof electric pilots
  • Liquid-liquid interface control and field-reversible action
3200/3201 level controller datasheet (PDF)

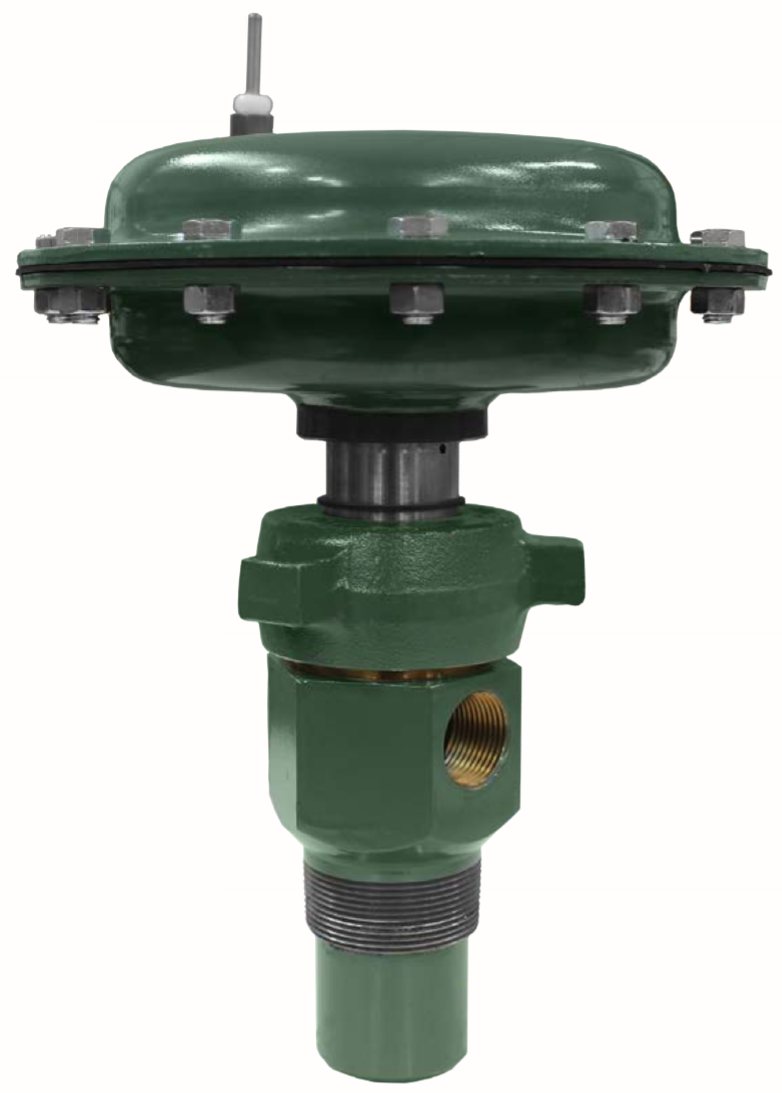

Mallard Model 5126/5127 freezeless control (dump) valve
5100, 5126/5127, 5450

Control & Dump Valves

Freezeless dump valves for fluid control in oil and gas separators and other process vessels. Mallard also offers the 5450 high-pressure motor valve.

  • Plug and seat stay submerged in the process media, giving the freezeless characteristic
  • 5100: compact angle body, stainless steel trim, 2220 psig at 100°F
  • 5126/5127: 2 in MNPT x 1 in FNPT, 1500 psig at 100°F, ANSI Class IV leakage
  • 5126/5127: change trim or actuator by removing the hammer nut, no special tools
5126/5127 dump valve datasheet (PDF)

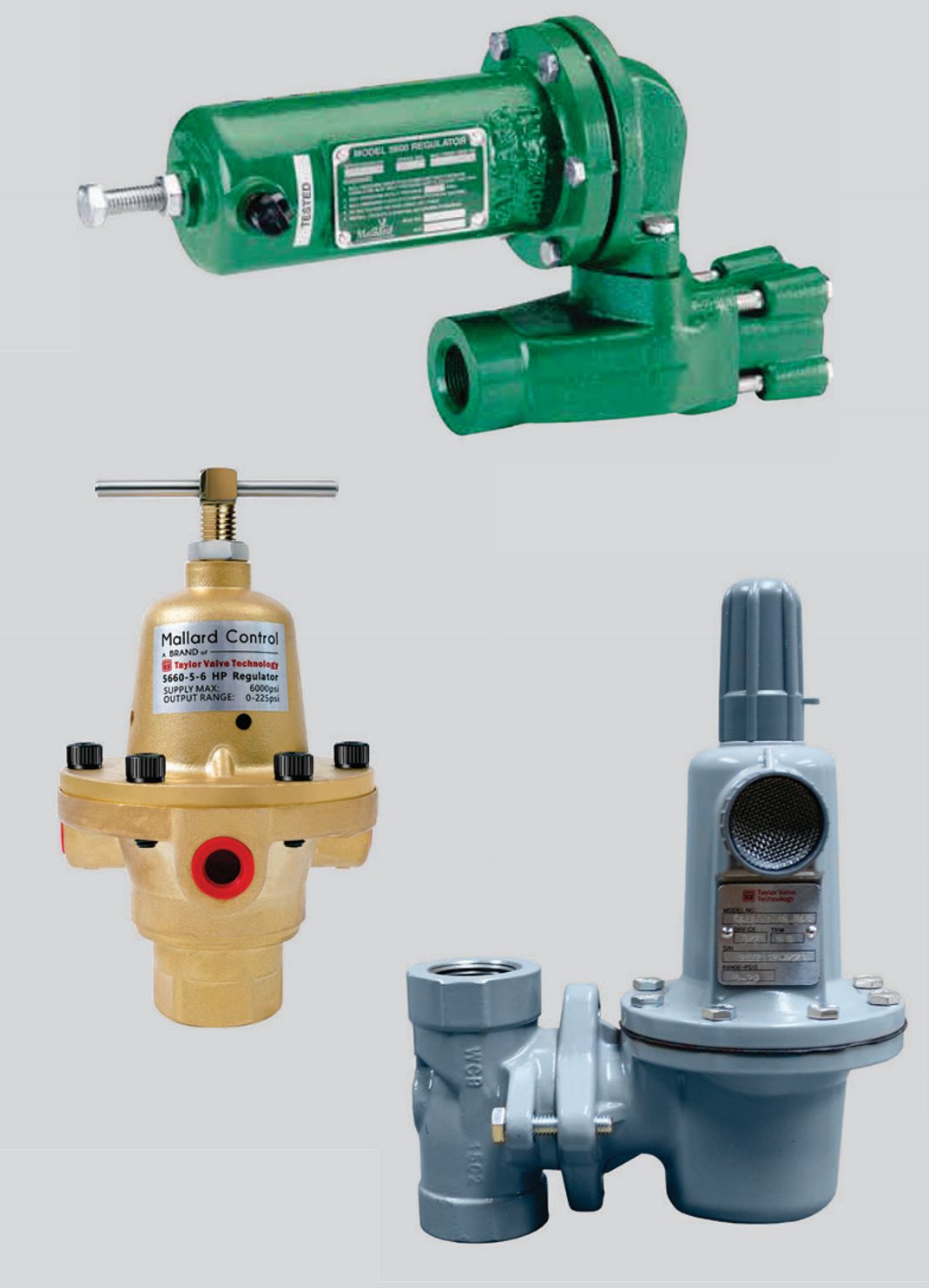

Mallard Model 5600, 5660 and 5646C pressure regulators
5600, 5602, 5646C, 5660

Pressure Regulators

Self-operated regulators for air, natural gas and other gases, from instrument supply to high inlet pressures.

  • 5600 regulator for inlet pressures up to 1500 psig
  • 5646C reducing regulator with integral pitot (boost) tube, inlet to 1000 psig
  • 5602 air set regulator supplies air or gas to pilots, positioners and pneumatic controls
  • 5660 forged brass regulator for inlet pressures to 6000 psig
Pressure regulators booklet (PDF)

Find a Solution by Application

Applications documented for Mallard Control products.

Oil and gas separator liquid dump
Dump valveOil & Gas
Oilfield scrubber and separator level control
Level controlOil & Gas
Liquid-liquid interface control
Level controlOil & Gas
Sour service level control (NACE MR0175 wetted materials)
Level controlOil & Gas

Industries Served

Oil & Gas

Level switches, level controllers, freezeless dump valves and regulators for separators and scrubbers.

View industry

Featured Products

Level Instrumentation

Model 3100E Electric Level Switch

Float-operated switch for high or low level alarm or control, 2 in MNPT, for direct vessel or external chamber mounting.

Literature
Control & Dump Valves

Model 5100 Freezeless Dump Valve

Compact freezeless angle dump valve, reverse acting (fail close), quick-opening trim, NACE MR0175 option.

Literature
Pressure Regulators

Model 5600 Pressure Regulator

Spring-loaded, self-operated regulator for air, natural gas and other gases, inlet pressures up to 1500 psig.

Literature
Pressure Regulators

Model 5646C Pressure Regulator

Self-operated reducing regulator with an integral pitot tube, 1 in body, inlet to 1000 psig, soft seat shutoff.

Literature
Pressure Regulators

Model 5660 High Pressure Regulator

Non-venting brass regulator, 1/4 in NPT, inlet to 6000 psig, outlet ranges 0-125, 0-150 and 0-225 psi.

Literature

Technical Resources

Application help

Need help selecting a Mallard level control, dump valve or regulator?

Tell us the product type, process media, operating pressure, temperature and connection size. For level controls add the specific gravity and whether you need a pneumatic or electric pilot. For regulators add inlet pressure, outlet pressure and flow. Replacing equipment? Send the manufacturer, model number and a clear photo of the nameplate. If you don't know an answer, mark it unknown.

Process mediaOperating pressureTemperatureConnection size and typeSpecific gravityInlet and outlet pressureExisting make and model
